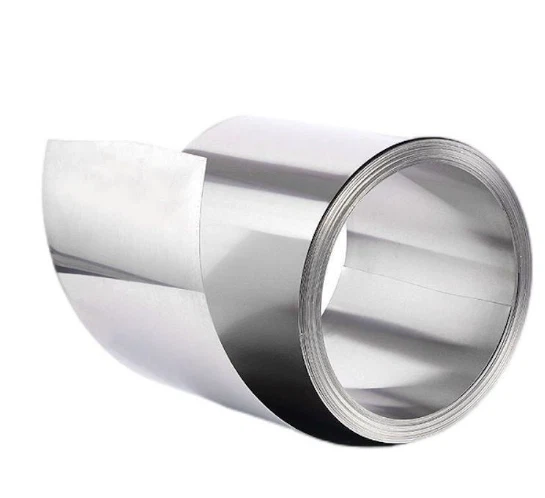

Gr3 Titanium Foil Sheet
With a density of 4.5g/cm³ and a relative specific gravity of 60%, Gr3 titanium strip is the lightest of all metals. Its yield strength is 380MPa, elongation is more than 20%, and it has good workability and plasticity. At the same time, Gr3 titanium foil also has excellent corrosion resistance and can remain stable in a variety of chemical media for a long time.
Top Quality Gr3 Titanium Foil
Chemical composition - limits in % (ASTM B863 latest edition)
| Ti | Rest |
| Fe | max. 0,50 |
| O | max. 0,35 |
| C | max. 0,08 |
| N | max. 0,05 |
| H | max. 0,015 |
Physical constants and thermal properties
| Density | 4,51g/cm² |
| Melting point | 1670°C |
| Beta transus temperature | 920 ± 4°C |
| Thermal conductivity at 20°C | 20 W/ m°C |
Typical mechanical properties (room temperature)
| Yield strength | min. 379 MPa |
| Tensile strength | min. 448 MPa |
| Elongation | min. 18% |
Due to its excellent corrosion resistance and processability, Gr3 titanium foil is often used in the manufacture of chemical equipment, marine engineering equipment, medical devices, aerospace equipment and other fields. In the food and pharmaceutical industries, Gr3 titanium alloy strips are also often used to make parts related to adhesion and corrosion.
Supply of Gr3 Titanium Foils with excellent properties
Our production capacity:
We have state-of-the-art manufacturing facilities equipped with cutting-edge technology and experienced professionals. This enables us to provide strong production capabilities to meet your supply needs in all forms.
Below is an overview of our production capabilities:
Annual Production: We have the capacity to produce 8,000 tonnes of titanium per year.
Sizes: Our production lines are capable of producing titanium products in a variety of sizes.
Highly Reliable Team Supply Gr3 Titanium Foil Coil
GNEE is a manufacturer specialising in the research, development, production, sales and service of titanium products such as titanium tubes, titanium rods, titanium sheets, titanium wires and titanium strips. Our company is located in Henan Province with convenient traffic. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
