Titanium Pipe Tube

Titanium tube is a kind of titanium tube (titanium tube) with titanium content greater than or equal to 5%, which has the characteristics of high strength, high toughness, fatigue resistance and so on, and is a new type of functional material. There are two main types of titanium tubes: seamless titanium tubes and welded titanium tubes (also known as titanium extruded welded tubes).

Send Inquiry

Chat Now

Product Introduction

Titanium is immune to corrosive attack by salt water or marine atmospheres. It also exhibits exceptional resistance to a broad range of acids, alkalies, natural waters and industrial chemicals. Titanium offers superior resistance to erosion, cavitation or impingement attack.

TITANIUM PIPES

Titanium is at least twenty times more erosion resistant than the copper-nickel alloys. Titanium and titanium alloys have proven to be technically superior, highly reliable and cost-effective in a wide variety of chemical, industrial, marine and aerospace applications. Titanium is utilized in many critical services due to its unique set of properties. Titanium is 45% lighter than steel and hence contributes to weight saving which is of paramount importance in offshore applications.

Whenever fresh titanium is exposed to the atmosphere or to any environment containing oxygen, it immediately acquires a thin tenacious film of oxide. It is the presence of this surface film that confers on the material its excellent corrosion resistance in a wide range of aggressive services. Titanium requires no corrosion allowance in design.

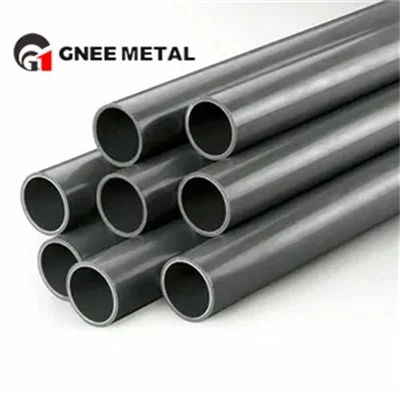

Grade 2 Titanium Flex Pipe

Some sizes requested

OD (mm)	WT (mm)	OD (mm)	WT (mm)	OD (mm)	WT (mm)
3.3	0.25	24	0.7	33.4	4.55
4	0.25	25	0.5	38	1.2
4.9	0.3	25	0.7	38.1	1.24
6.35	0.889	25	1.5	40	0.5
12.7	0.8	25	2	45	1.5
15.88	0.5	25	2.2	45	2
15.88	0.71	25.4	0.89	48.26	1.65
19	0.508	25.4	1.07	48.3	5.08
19	0.711	25.4	1.473	50.8	0.7
19	0.9	25.4	2.108	50.8	0.889
19	1.24	26.67	2.11	50.8	0.9
19.05	0.56	26.67	3.912	51	1.5
19.05	0.9	31.75	0.7112	56	0.8
19.05	1.24	31.75	0.889	60.3	1.5
19.05	1.65	31.75	1	60.325	0.889
19.05	3	31.8	0.89	62	2
21.34	2.11	33.4	2.77	89	2
24	0.5	33.4	3.38	114.3	3.05

Inspection method of titanium round tube
Testing of titanium tubing is very important to ensure its quality and reliability. Commonly used inspection methods include ultrasonic inspection, X-ray inspection, chemical analysis, metallographic analysis, etc.2 These methods can detect defects such as flaws, cracks, porosity, inclusions, etc. in titanium tubing, and assess information such as its chemical composition, organisational structure and phase composition.

Applications of Titanium Tubes

For sea water applications titanium performs better than copper based alloys. In fact for sea water applications no other material comes close to the economical and technical performance offered by titanium. Titanium is resistant to crevice corrosion up to about 80°C in sea water. Titanium is also immune to microbiologically influenced corrosion.
