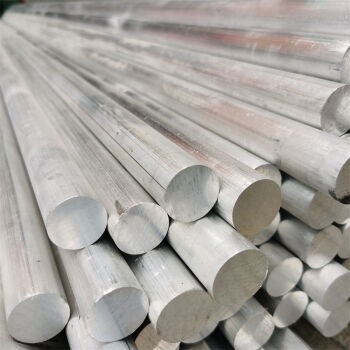

Titanium Gr7 Round Rods And Bars
video

Titanium Gr7 Round Rods And Bars

Titanium Grade 7 is mechanically and physically equivalent to Titanium Grade 2, with the exception of additional interstitial palladium which makes this material alloy. Grade 7 demonstrates excellent weldability, fabricability, and is the most corrosion resistance of all titanium alloys. Because of these traits, this material is often used in chemical production processes and applications within the production equipment.
Send Inquiry
Chat Now
Product Introduction

Grade 7 titanium alloy rods have good corrosion resistance, especially in both reducing and oxidising environments, and are therefore commonly used in areas such as chemical, marine and medical equipment. Compared with steel, Grade 7 titanium metal rods have a lower density, so they are advantageous in areas where lightweight design is required.Grade 7 titanium round rods have good weldability and are suitable for a variety of welding processes, such as TIG welding and MIG welding.



First-class Gr7 Titanium Rod Production Process

solid titanium rod



Chemical Composition
Fe 0.3% O 0.25% Pd 0.12 – 0.25% C 0.08% N 0.03%
H 0.015% Other, total 0.4% Ti Remainder



PHYSICAL PROPERTIES
Density Electrical conductivity (% IACS) Thermal conductivity (BTU-in/hr-ft²-°F) Specific heat (BTU/lb-°F) Thermal expansion (1/°F) Melting Point (°F)
0.162 – 12.6 – – –

Grade 7 titanium alloy bar usually requires controlled forging temperature and speed during the forging process to ensure that good forming properties and mechanical properties are obtained. Due to its special indium-containing composition, Grade 7 titanium alloy needs to pay attention to the appropriate heating temperature and holding time during the forging process, in order to avoid the organisation and property problems caused by overheating or too fast cooling.



Packaging of Gr7 Titanium Round Bar

titanium alloy round bar



titanium metal bar
