Pure Titanium Plates vs Composite Titanium Plates: Key Differences

Definitions of the Two Plate Types

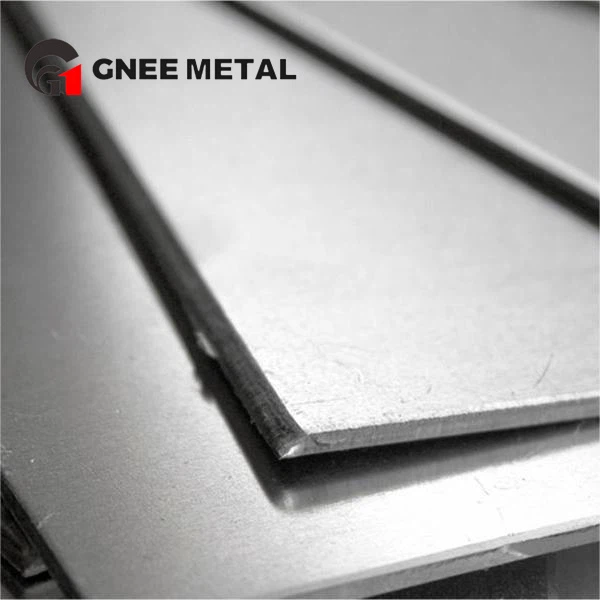

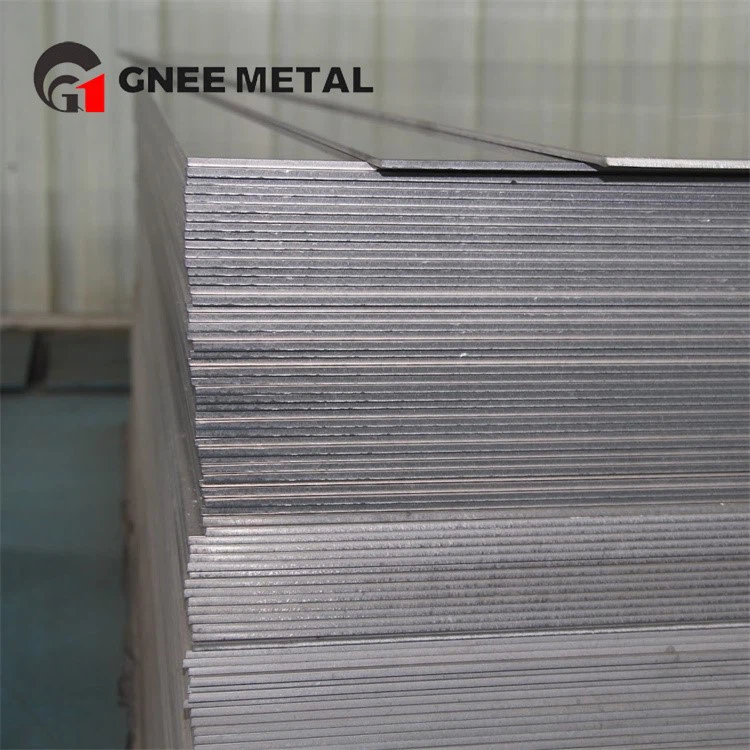

A pure titanium plate is a flat product rolled from titanium ingot or slab, with the same titanium chemistry through the full thickness. It is produced to ASTM B265 or equivalent specifications, in grades such as Grade 1, Grade 2 and Grade 7, and is used where the entire cross-section must resist corrosion or where titanium is required for strength and weight reasons.

A composite titanium plate, commonly called titanium clad plate, consists of a titanium layer metallurgically bonded to a backing material, usually carbon steel or stainless steel. Bonding is achieved by explosion cladding, roll bonding or hot pressing. The titanium layer, typically 2 to 8 mm thick, provides corrosion resistance on the process side, while the steel backing supplies structural strength at much lower cost than solid titanium.

Structural and Mechanical Differences

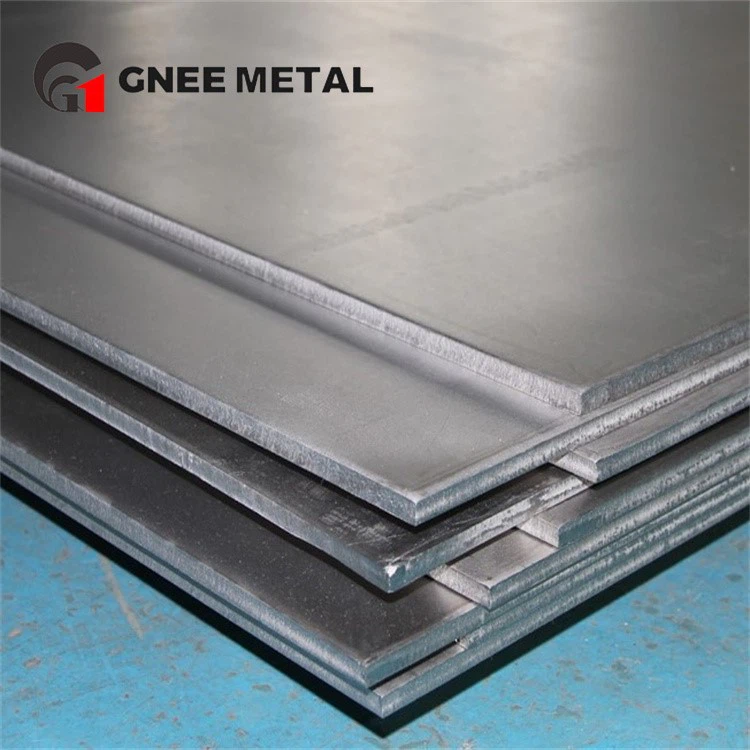

Solid pure titanium plate has moderate strength: Grade 2, for example, offers a minimum tensile strength of 345 MPa, and Grade 4 about 550 MPa. The full section is titanium, so the plate is corrosion resistant on both faces, but the material cost is high and elastic modulus is low, about 105 GPa, which makes solid titanium less rigid than steel for the same thickness.

Clad plate behaves structurally like steel. The steel backing carries the bending and pressure loads, so the plate can be designed with familiar steel rules, while the thin titanium layer handles the chemical environment. The bond interface must be sound: shear strength at the interface is typically required to be at least 140 MPa in explosion-bonded plate, and the joint is verified by ultrasonic testing over the full area.

Corrosion and Thermal Performance

In corrosive service, the titanium surface of a clad plate performs identically to solid titanium, resisting chlorides, oxidizing acids and seawater. The difference appears at edges and welds: clad plate must be edge-sealed and welded with care so that the steel backing does not contact the process fluid. Weld details use titanium-to-titanium joints with a transition detail at the interface, and the exposed steel edge is protected by a titanium cover strip or seal weld.

Thermal conductivity and thermal expansion also differ. Titanium expands less than steel, so clad plate sees differential thermal stress at the bond line during temperature cycling. Designers allow for this by limiting operating temperature ranges and by using transition joints in piping. Solid titanium plate avoids the bimetal issue but costs several times more per square metre.

Fabrication Differences

Solid titanium plate is formed, welded and inspected with titanium-specific practice: clean handling to avoid iron contamination, argon shielding for welding and controlled heat input. Because the whole plate is titanium, any repair weld is straightforward, and the material can be re-rolled or re-annealed if required.

Clad plate is heavier and stiffer, so forming requires heavier equipment, and the clad side must be protected during bending. Cutting is normally done by plasma or sawing from the steel side to avoid damaging the titanium edge, followed by grinding and edge sealing. Repair of the clad surface requires removing the damaged titanium, building it back with weld overlay or a patch plate, and re-testing the bond area.

Cost and Application Selection

The decision between solid and clad plate is primarily economic. Solid titanium suits small vessels, piping, and equipment where the geometry makes cladding impractical, or where both faces must resist corrosion. Clad plate suits large vessels, columns, storage tanks and heat exchanger shells where pressure loads are carried by steel and only one face sees the corrosive media.

In a typical large chemical reactor, a clad vessel costs a fraction of a solid titanium vessel while delivering the same process-side corrosion resistance. The trade-off is the added fabrication complexity of edge sealing and interface welds. Engineers compare the total installed cost, including fabrication, inspection and future maintenance, to make the final choice.

Frequently Asked Questions

Q: What is the difference between pure titanium plate and titanium clad plate?

A: Pure titanium plate is solid titanium through the full thickness, while clad plate is a thin titanium layer bonded to a steel or stainless backing that carries the structural loads.

Q: How is titanium clad plate manufactured?

A: The most common route is explosion cladding, where a controlled explosive charge drives the titanium plate onto the steel base to form a metallurgical bond; roll bonding and hot pressing are also used.

Q: Does the titanium layer of clad plate corrode the same as solid titanium?

A: Yes, the titanium surface behaves identically, but edges and welds must be sealed so the steel backing is not exposed to the process fluid.

Q: When should solid titanium plate be chosen instead of clad plate?

A: Solid titanium suits small equipment, both-side corrosion requirements and complex geometries where cladding and edge sealing are impractical, despite the higher material cost.

Q: How is the bond quality of clad plate verified?

A: The entire bond area is examined by ultrasonic testing, and mechanical tests confirm that the interface shear strength meets the specification, typically at least 140 MPa.
