Titanium CP Grade 2
ASTM B265 Gr2 - Sheet, plate
ASTM B338 Gr2 - Heat exchange tube
ASTM B348 Gr2 - Bar ASTM B381 Gr2 - Forgings ASTM F467 Gr2 - Nuts ASTM F468 Gr2 - Bolts
Products Description
UNS R50400, EN 3.7035 Commercially Pure Titanium, C.P Titanium
Titanium Alloy Grade 2 is commercially pure titanium. It has outstanding corrosion resistance and useful strength (similar to austenitic stainless steels) at low density. It has good weldability and is easily formable. It is the most commonly used grade of titanium.
Chemical Composition
| Weight % | Ti | C | Fe | N | O | H |
| Titanium CP Grade 2 | Bal. | 0.08 | 0.30 | 0.05 | 0.020 | 0.015 |
Mechanical Property
| Material | Tensile Strength min | Yield Strength min. | Elongation | ||
| KSI | Mpa | KSI | KSI | MPa | A (%) |
| Titanium CP Grade 2 | 50 | 345 | 40-65 | 276-448 | 20 |
Availability

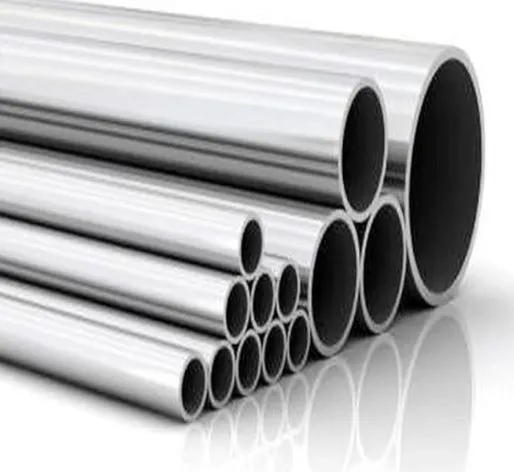

Titanium Grade 2 is available in Bar, Billet, Extrusion, Plate, Sheet, Strip, Wire, Pipe, Tube, Rings and Forgings.
Forgings:
Ring size capability
OD ≤ 1300mm
Height ≤ 250mm
Disc size capability
OD ≤ 1100mm
Height ≤ 40mm
Most of the applications of this grade are in the chemical industries. The most common uses are reactor autoclaves, piping and fittings, valves, heat exchangers and condensers.
ASTM B265 Gr2 - Sheet, plate
ASTM B338 Gr2 - Heat exchange tube
ASTM B348 Gr2 - Bar
ASTM B381 Gr2 - Forgings
ASTM F467 Gr2 - Nuts
ASTM F468 Gr2 - Bolts
