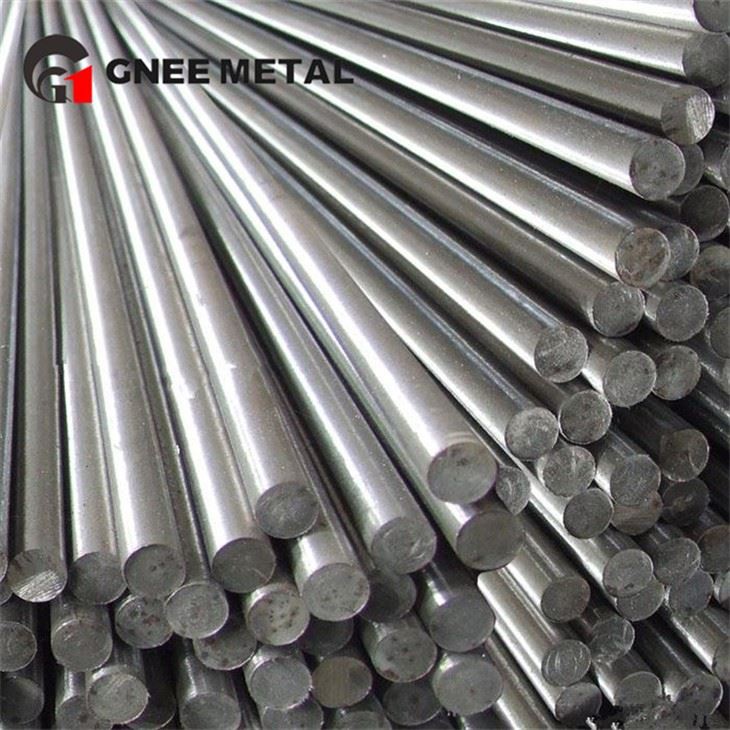

Gr1 Titanium Rod
The GR1 Titanium Rod is a high-ductility, commercially pure Grade 1 titanium product manufactured to ASTM B348 standards. It delivers exceptional corrosion resistance, excellent formability, and biocompatibility, making it ideal for chemical, marine, medical, and food industry applications.
Main characteristics of Gr1 titanium rods
Good forming properties: TA1 has excellent plasticity and toughness and is easy to press and form.
Excellent corrosion resistance: excellent corrosion resistance in atmosphere, seawater and many chemical media.
Good machinability: suitable for welding, cutting and other machining processes.
Industry-leading technology for the production of Gr1 titanium alloy rods
Chemical composition - limits in %
| Ti | Rest |
| Fe | max. 0,20 |
| O | max. 0,18 |
| C | max. 0,08 |
| N | max. 0,03 |
| H | max. 0,015 |
Physical constants and thermal properties
| Density | 4,51g/cm² |
| Melting point | 1670°C |
| Beta transus temperature | 888 ± 4°C |
| Thermal conductivity at 20°C | 16 W/ m°C |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 240 |
| Yield Strength (MPa) | ≥ 170 |
| Elongation (%) | ≥ 24 |
| Modulus of Elasticity | ~105 GPa |
| Hardness (HB) | ~80 |
Main applications of Gr1 titanium round bar
Aerospace industry: mainly used for stamping parts and corrosion-resistant structural parts with working temperature below 360°C but requiring high mechanical strength, such as aircraft frames and skins, engine attachments, etc.
Marine engineering: seawater corrosion-resistant pipes, valves, pumps, etc.
Chemical equipment: used in the manufacture of desalination system components, chemical heat exchangers, pumps, distillation towers, coolers, stirrers, tees, impellers, solids, ion pumps, compressor valves and diesel engine pistons, connecting rods, plate springs and so on.
Quality Control & Testing
Every ASTM B348 Titanium Rod undergoes rigorous inspection, including:
Chemical Analysis – Confirms purity meets GR1 standards.
Mechanical Testing – Tensile, yield, and elongation tests.
Nondestructive Testing (NDT) – Ultrasonic and eddy current inspections.
Dimensional Verification – Ensures precise diameter and length tolerances.
Surface Examination – No cracks, pits, or contamination.
Large scale factory production of Gr1 titanium metal rods
Our production capacity:
We have state-of-the-art manufacturing facilities equipped with cutting-edge technology and experienced professionals. This enables us to provide strong production capabilities to meet your supply needs in all forms.
Below is an overview of our production capabilities:
Annual Production: We have the capacity to produce 8,000 tonnes of titanium per year.
Sizes: Our production lines are capable of producing titanium products in a variety of sizes.
Why choose our Gr1 titanium rods
Our team specializes in the titanium products foreign trade sector, bringing together seasoned professionals with years of in-depth industry experience. From technical R&D to sales, every member possesses solid expertise in titanium materials and a deep understanding of international markets. We are proficient in the characteristics and applications of various titanium grades-from Grade 1 to Grade 5-enabling us to precisely meet the stringent demands of global clients in fields such as aerospace, marine engineering, and chemical corrosion protection.
