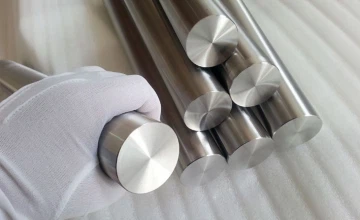

ASTM B348 GR5 Titanium Round Bars
Size:Φ0.5mm—30mm
Length:1000——3000mm
Application: Mainly for industrial purpose such as Artificial joints, rotating shaft, golf head, hand tools, screw and nut and so on.
Products Description
ASTM B348 / B348M - 19 Titanium and Titanium Alloy Bars and Billets
ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Billets. Because of its high strength and lightweight property, they are widely used in the component for the high-temperature environment, including aircraft equipment, petrochemical and chemical industry and so on.
Standards:
ASTM B348, ASME SB348, ASTM B381, ASME SB381ELI, ASTM F136, ASTM F67, AMS 4928, AMS 4965, ISO 5832-2, ISO 5832-3
Grades:
Unalloyed Titanium:
Grade 1,Grade 2, Grade 3, Grade 7, Grade 11 (CP Ti-0.15Pd), Grade 16,Grade 17, Grade 26, Grade 27
Titanium Based Alloys:
Grade 5 (Ti-6Al-4V),Grade 9 ( Ti 3Al-2.5V),Grade 12 (Ti-0.3-Mo-0.8Ni), Grade 19 (Ti Beta C),Grade 23 (Ti 6Al-4V ELI), Grade 28
Grades of supply: Gr1, Gr2, Gr5, Gr12
Commonly used grades ASTM B348 Chemical Composition:
| Grades |
Ti |
C max |
N max |
H max |
Al |
V |
O max |
Ni |
|
Gr1 |
Reminder |
0.08 |
0.03 |
0.015 |
/ |
/ |
0.18 |
/ |
|
Gr2 |
Reminder |
0.05 |
0.03 |
0.015 |
/ |
/ |
0.25 |
/ |
|
Gr5 |
Reminder |
0.10 |
0.05 |
0.015 |
5.5~6.75 |
3.5~4.5 |
0.20 |
/ |
|
Gr12 |
reminder |
0.08 |
0.03 |
0.015 |
/ |
/ |
0.25 |
0.6-0.9 |
Commonly used grades ASTM B348 Mechanical Properties (%):
| Grades |
Tensile strength min (N/mm2) |
Yield strength mm (N/mm2) |
Elongation 4D min |
Reduction of Area min |
|
Gr1 |
240 |
138 |
24 |
30 |
|
Gr2 |
345 |
275 |
20 |
30 |
|
Gr5 |
895 |
828 |
10 |
25 |
|
Gr12 |
483 |
345 |
18 |
25 |
Size:
Φ5mm-350mm
Length:
300-6000mm
Titanium rod production status:
Hot-work: R, Cold-work: Y, Annealing: M, Solutioning: ST
Application:
Mainly for the industrial purposes such as Artificial joints, rotating shaft, golf head, hand tools, screws and nuts, etc.
