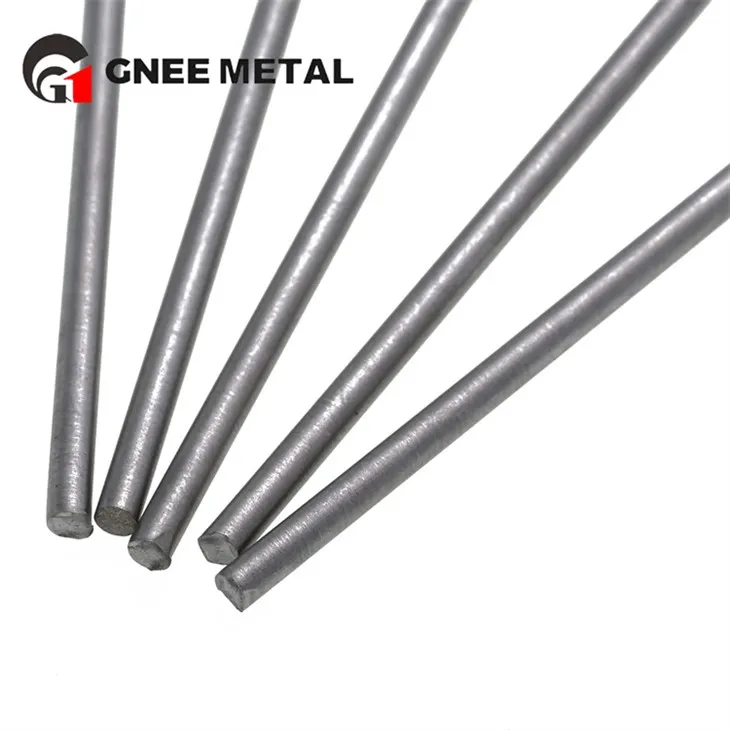

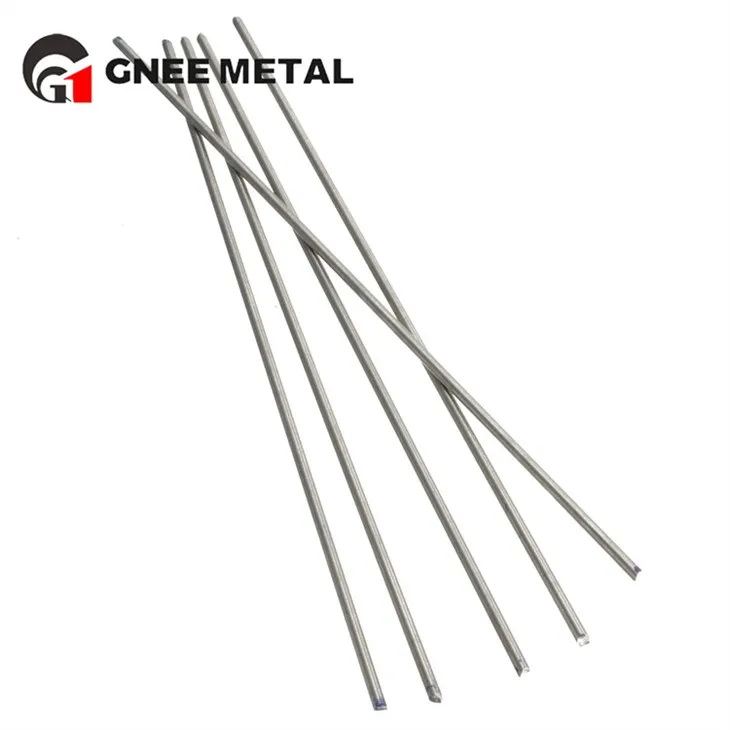

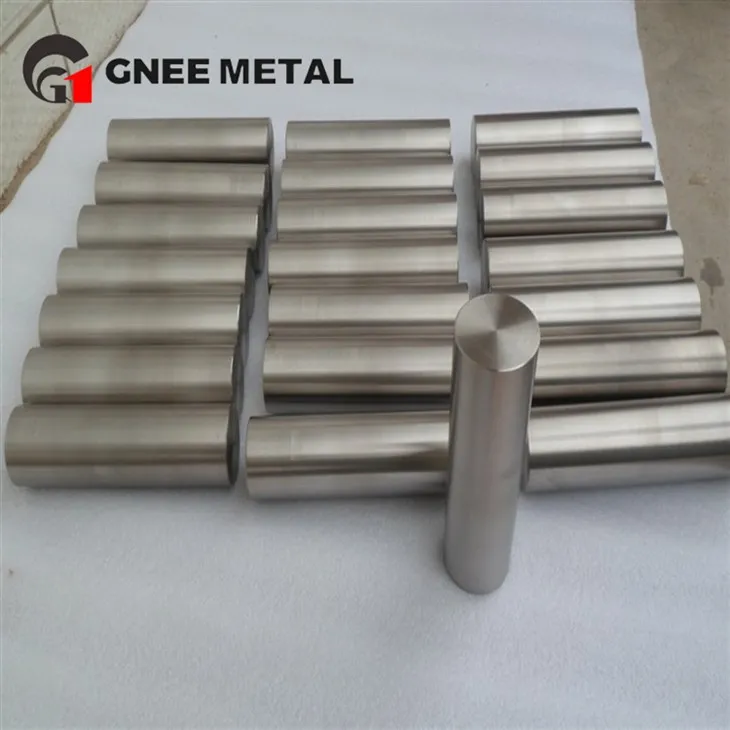

Titanium Alloy Rod Gr5 Ti6Al4V
Grade 5 Titanium is one of the most popular alloys in the titanium industry and makes up almost half of the titanium used in the world. Commonly referred to as Ti-6AL-4V (or Ti 6-4), this designation refers to its chemical composition of almost 90% titanium, 6% aluminum, 4% vanadium, 0.25% (max) iron and 0.2% (max) oxygen. It has excellent strength, low modulus of elasticity, high corrosion resistance, good weldability and it is heat treatable. The addition of aluminum and vanadium increases the hardness of the material in the alloy matrix, improving its physical and mechanical properties.
High level of production technology for Gr5 titanium tubing
Characteristics of TiGr5 / Ti6AI4V / AMS4911
| Property | Value |
|---|---|
| Temperature Range | High temperature range/Material for wet corrosion |
| Density | 4.43 g/cm³ |
| Melting Range | 1650°C |
| ISO-V notch impact toughness at -59°C | across < J/cm² |
| lengthwise < J/cm² | |
| Ultimate Tensile Strength | 135 KSI (950 MPa) |
| Yield Strength (0.2% offset) | 125 KSI (880 MPa) |
| Elongation | 15% |
| Hardness | Rc 34 |
GR5 titanium bar is a widely used high strength titanium alloy. It has excellent mechanical properties, higher strength than industrially pure titanium, and good corrosion resistance, welding properties and machinability.GR5 titanium alloy is widely used in aerospace, medical equipment, chemical industry and other fields. It is used in the manufacture of jet engine compressor blades, aircraft structural parts, chemical equipment, marine engineering and so on. Due to its special properties, GR5 titanium alloy bar plays an important role in modern industry.

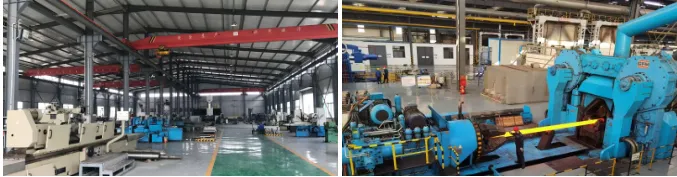

Large-scale factory production of Gr5 alloy titanium tubes
Highly reliable team supplying Gr5 medical titanium tube
GNEE is a manufacturer specialising in the research, development, production, sales and service of titanium products such as titanium tubes, titanium rods, titanium sheets, titanium wires and titanium strips. Our company is located in Henan Province with convenient traffic. Our factory has been engaged in foreign markets for more than 16 years and has rich production experience. Our main markets are Dubai, Indonesia, Singapore, Vietnam, Malaysia, Philippines, Chile, Mexico, Israel, Spain and so on.
