Basic titanium weight calculation method:
1, titanium bar:
Weight kg = outer diameter * outer diameter * length L * 3.54 * 0.001 * 0.001

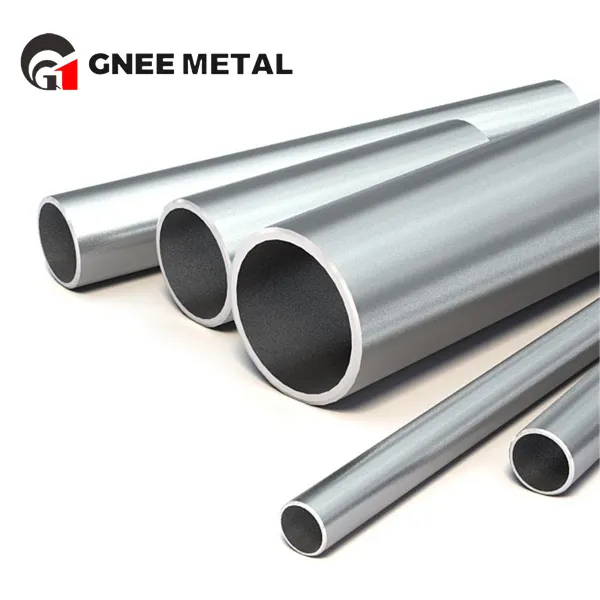

2, Titanium tube:
Weight kg = (outer diameter - wall thickness) * wall thickness * 3.14 * 4.51 * length * 0.001 * 0.001
3,Titanium plate:
Weight kg=Length*Width*Thickness*4.51*0.001*0.001
4, Coil tube:
4.1 Titanium tube parameters: titanium tube outer diameter * wall thickness
4.2 Coil outer diameter
4.3 Number of coiler turns
4.4 Length of inlet and outlet pipe
According to the above data, first calculate the length of titanium tube L = coiled tube OD * 3.14 + inlet and outlet tube length + margin; then the weight of titanium tube used for coiled tube kg = titanium tube length L * (titanium tube OD - wall thickness) * wall thickness * 3.14 * 4.51 * 0.001 * 0.001.
