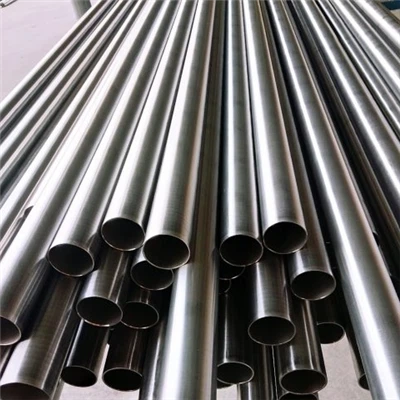

Titanium Gr5 Round Tubes
1) Production mode: hot forging and machining. ② Hot extrusion, machining. ③ Hot rolling, machining
2) Testing methods: ultrasonic wave testing, dye penetrant testing, physical testing, etc.
3) Scope of application: the products are widely used in seawater desalination, offshore oil exploration, offshore oil drilling, pressure equipment, pressure vessels, tanks, gas drilling equipment and other fields of high pressure resistance, corrosion resistance, non-magnetic, high temperature resistance.
Products Description
Titanium round tube has high strength, low Bai density, good mechanical properties, good toughness and corrosion resistance. In addition, titanium alloy has poor process performance and difficult cutting. In hot working, it is very easy to absorb hydrogen, oxygen, nitrogen, carbon and other impurities. In addition, the anti-wear property is poor and the production process is complex. The industrial production of titanium began in 1948.
Chemical composition (Wt%)
|
ASTM No. |
Fe max |
O max |
N max |
C max |
H max |
Pd |
Al |
Bal |
|
Grade 1 |
0.2 |
0.18 |
0.03 |
0.1 |
0.015 |
- |
- |
Ti |
|
Grade 2 |
0.3 |
0.25 |
0.03 |
0.1 |
0.015 |
- |
- |
Ti |
Physical Properties (Min)
|
ASTM Grade |
Alloy Composition |
Tensile Strength |
Yield Strength |
Elongation min % |
||
|
ksi |
Mpa |
ksi |
Mpa |
|||
|
Grade 1 |
Unalloyed Ti ("Pure") 35A -CP1 |
35 |
240 |
25 |
170 |
30 |
|
Grade 2 |
Unalloyed Ti ("Pure") 50A -CP2 |
58 |
400 |
40 |
275 |
25 |
