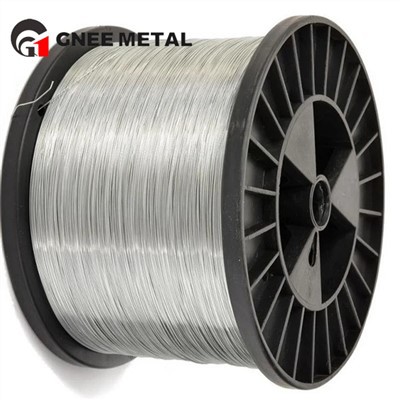

Titanium Grade 2 Weld Wire

Gr2 ERTi-2 Titanium Wire is a kind of pure titanium welding wire for commercial use. Compared with TA1 welding wire, its impurity content is less, it has good mechanical properties and excellent welding process performance. It is used for titanium alloy welding, mainly seawater and brine heat exchanger, condenser and paper bleaching system.



Excellent Corrosion Resistance:
Outstanding performance in seawater, chlorides, nitric acid, and industrial chemicals-ideal for aggressive environments

Balanced Mechanical Properties:
Good strength combined with moderate ductility for reliable weld joints

Superior Weldability:
Stable arc, excellent wetting characteristics, and minimal spatter

Lightweight:
Approximately 40% lighter than steel filler metals

Oxide Self-Healing:
Spontaneously forms protective oxide layer when exposed to oxygen or moisture



Industry-leading titanium production technology

Specification	OD：1.0-4.0mm L： 1000mm
Technology	Forging, Drawing
Surface	Polished surface, pickling surface
Advantages	Corrosion resistance, high temperature resistance low temperature resistance, non-toxic, non-magnetic, high strength, small thermal conductivity
Application	Used for titanium alloy welding, mainly seawater and brine heat exchanger, condenser and paper bleaching system and other projects.



Component	Ti	Fe	O	C	N	H
Gr2 ERTi titanium wire	Balance	≤0.20	≤0.18	≤0.05	≤0.03	≤0.012



Property	Value
Density	4.51 g/cm³ (0.163 lb/in³)
Melting Point	1660-1700°C (3020-3092°F)
Thermal Conductivity	16.4 W/m·K at 20°C
Electrical Resistivity	0.56 μΩ·m at 20°C
Modulus of Elasticity	105 GPa (15.2 × 10⁶ psi)
Coefficient of Thermal Expansion	8.6 µm/m·°C (20-100°C)
Magnetic Permeability	Non-magnetic



Property	Typical Value	AWS Requirement
Tensile Strength	400-550 MPa	≥ 345 MPa
Yield Strength (0.2% offset)	300-400 MPa	≥ 275 MPa
Elongation	20-28%	≥ 20%
Reduction of Area	30-40%	-
Hardness (HV)	150-180	-
Hardness (HRB)	75-90	-

Titanium Grade 2 Coil Wire is the best cp titanium grade, where it is the softest and most ductile compared to grades. Typical applications for Titanium Grade 2 Wire include chemical process, petroleum refining, biomedical as well as heat exchangers in an array of different applications. Titanium Grade 2 is light in weight, has extraordinary corrosion resistance, and has the ability to withstand extreme temperatures. Grade 2 Titanium Wire is used commonly in applications that require welding because of its strong weldability properties. Titanium Grade 2 Filler Wire is higher in strength than CP Grade 1, but lower in strength than CP Gr 4.



Diameter Tolerances:

Standard: ±0.03mm

Precision: ±0.015mm (for automated welding)



Packaging:

Vacuum-sealed bags with desiccant

Nitrogen-purged containers

Custom spool dimensions

Straight lengths cut to specified dimensions (500mm-3000mm)



Surface Treatments:

Pickled and cleaned (standard)

Bright annealed

Mechanically polished



Marking:

Custom labels with customer part numbers

Barcode tracking

Special certification requirements



Q1: What is the difference between Grade 1 and Grade 2 titanium welding wire?

Grade 1 has lower oxygen and iron content (O ≤ 0.18%, Fe ≤ 0.20%) than Grade 2 (O ≤ 0.25%, Fe ≤ 0.30%). Grade 1 offers higher ductility and formability with slightly lower strength. Grade 2 provides a better balance of strength and ductility for most industrial applications.



Q2: Can Grade 2 welding wire be used for welding other titanium grades?

Yes, Grade 2 wire is suitable for welding:

Grade 1 and Grade 2 base metals

Grade 3 and Grade 4 for non-critical applications

Not recommended for welding high-strength alloys like Grade 5 (Ti-6Al-4V)



Q3: What shielding gas purity is required?

Minimum 99.995% pure argon is essential. Lower purity can cause embrittlement and contamination. Oxygen content should be below 20 ppm, moisture below 10 ppm.



Q4: How do I prevent weld contamination?

Use dedicated stainless steel tools for titanium only

Clean with acetone (no chlorinated solvents)

Maintain adequate gas coverage during welding and cooling

Use trailing and backup gas for critical welds

Protect weld until temperature drops below 300°C
