Details at a glance
Titanium Grade 4 has a higher gas content compared to other classic pure titanium grades, which results in higher strengths. The level of strength is comparable to that of classic stainless steels while offering a high strength-to-weight ratio and superior corrosion resistance. For example, Titanium Grade 4 has excellent corrosion resistance in brine and salt solutions, oxidizing media, alkaline media, organic acids and seawater.
Areas of application for Titanium Grade 4
Chemical and maritime industries, electroplated frame contacts, anodizing equipment, electropolishing, vessel construction, frame construction, fasteners where applicable, medical devices, dental implants and surgical instruments.

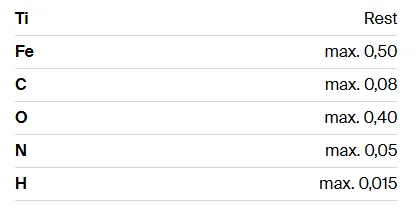

Chemical composition - limits in % (ASTM B348/863 + B265)
Physical constants and thermal properties
Typical mechanical properties (at room temperature for ASTM B348/863)
Typical mechanical properties
Titanium products provided by GNEE
|
Standard
|
ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
|
|
Material Grade
|
Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc
|
|
Length
|
≤15000mm
|
|
Size(mm)
|
Diameter 3-114mm
|
|
Section shape
|
Round / Square
|
|
Tolerance |
a) Outer Diameter: +/- 0.01mm
|
|
b) Thickness: +/- 0.01mm
|
|
|
c) Length: +/- 0.1mm
|
|
|
Surface
|
Pickling, annealing, polishing, bright.
|
|
Feature
|
1.Low Density and High Strength
2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
|
Test
|
Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
|
|
Material
|
Pure titanium and Titanium alloy
|
|
Titanium Grade
|
GR1/GR2/GR3/Gr4/GR5/GR7/GR9/GR12/Gr5Eli/Gr23
|
|
Standard
|
ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3),AMS 4928 etc
|
|
Shape
|
Titanium round rod/bar, Titanium square rod/bar,Titanium flat rod/bar
Titanium rectangle rod/bar, Titanium hex rod/bar |
|
Diameter
|
1-300mm,customizable
|
|
Length
|
50mm-6000mm,customizable
|
|
Tolerance
|
h6~h13 H10~H13
|
|
Surface
|
Bright/Polished/ Machined
|
|
Main Technique
|
Hot Forged; Hot Rolled; Cold drawn; Straighten etc
|
|
Heat Treatment
|
Usually are Annealled,but Solid Solution & Aging can be also OK
|
|
Material Milling Certificate
|
According to. EN 10204.3.1
Including Chemical composition and Mechanical property |
|
Application
|
Metallurgy, Electronics, Medical, Chemical, Petroleum, Pharmaceutical, aerospace, etc.
|
|
Standard |
ASTM B265 JIS H4600 GB/T 3620.1 |
|
Grade |
ASTM Pure Ti: Gr.1 Gr.2 Gr.3 Gr.4 Ti Alloy: Gr.5 Gr.7 Gr.9 Gr.11JIS Pur Ti: Class 1 Class 2 Class 3 Class 4;Ti Alloy: Class 60 |
|
Size |
thickness 0.3mm~100mm; Width 50mm~2500mm; Length 1000mm~12000mm |
|
Surface |
Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc |
|
Application |
1)Further making utensil. |
|
Grade |
GR1,GR2,GR3,GR4,GR5,GR7,GR9,GR11,GR12,GR23 etc.
ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5, ERTi-7, ERTi-9, ERTi-11, ERTi-12 |
|
Size |
Dia：0.1-8mm or customizable |
|
Standard |
ASTM B348,ASME SB348,ASTM B863,AWS.A5.16,GB/T3623-2007 |
|
MOQ |
10kg |
|
Quality and test |
Annealing, Ultrasonic testing |
|
Application |
Aerospace, Chemical, Medical, Eye Frames,Welding etc |
|
Feature |
High strength,Light weight,Excellent heat conduction and corrosion resistance |
|
Condition |
Annealed (M), Hot Worked (R), Cold Worked (Y) |
|
Surface |
Bright, Polished, Pickling, Sandblasting |
|
Package |
Wooden Box |
